23.5 cm from the wall. 100 inches on it.
A 100-inch picture needs 23.5 cm between the front of the unit and the wall. The body is 18 cm deep and 7 cm tall, so the console needs 41.5 cm in total — a standard Singapore console is 40–45 cm. A 4K Google TV stick comes in the box.
Lower than a soft-drink can lying on its side. Nothing on the console blocks the picture.
The reason it fits. 18 cm of body behind a 23.5 cm gap comes to 41.5 cm — inside a standard 40–45 cm console.
The footprint of a closed 13-inch laptop. One shelf, two hands, done.
Light enough to move between rooms without unplugging your whole setup.
31 × 18 × 7 cm · 1.8 kg · laser light source · 125% image offset · 16:9 · up to 300"
The only measurement that decides whether this works in your room
Not brightness. Not resolution. Console depth. Here is the number, drawn to scale.
100-inch image · side elevation · drawn to scale, 4.7 px = 1 cm
The 23.5 cm is the clear gap between the wall and the front face of the unit. Add the 18 cm body behind it and the console needs 41.5 cm — against a Singapore standard of 40–45 cm. Move the unit closer for a smaller picture and less depth; the planner below does the arithmetic.
Measure your console, then move the slider
Screen size and required console depth, calculated from the distance between the front of the unit and the wall.
Plan view
Projected image
Exactly what you are buying
Projector specifications are written to flatter. These are written so nothing surprises you after delivery.
Native 1080p. Accepts 4K.
The panel is 1920 × 1080. It accepts a 3840 × 2160 signal and downscales it, so 4K sources play correctly and look sharp — but the projector itself is Full HD, not 4K. The 4K in the box is the Google TV stick.
Laser, not LED or lamp.
A laser light source: no bulb to replace, full brightness from cold, and stable colour over its life. Dark scenes hold their black rather than washing to grey.
Google TV is on the stick.
Netflix, Disney+, YouTube and mewatch run on the included 4K Google TV stick through HDMI — properly licensed apps, not a sideloaded Android build. Nothing to configure beyond your Wi-Fi password.
125% offset, auto keystone.
The image rises clear of the console without tilting the unit. Automatic vertical and horizontal keystone handles the rest — though the sharpest result always comes from squaring it up properly, which we do at delivery.

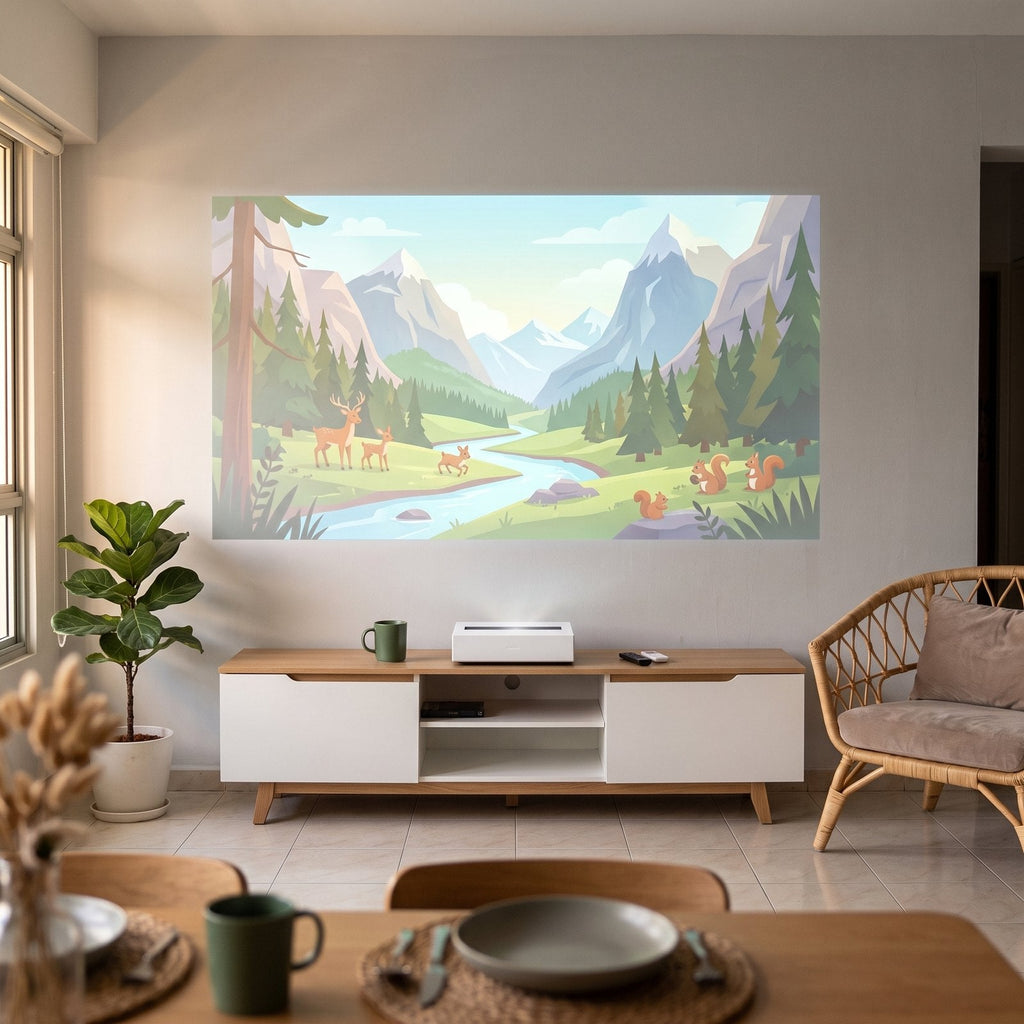

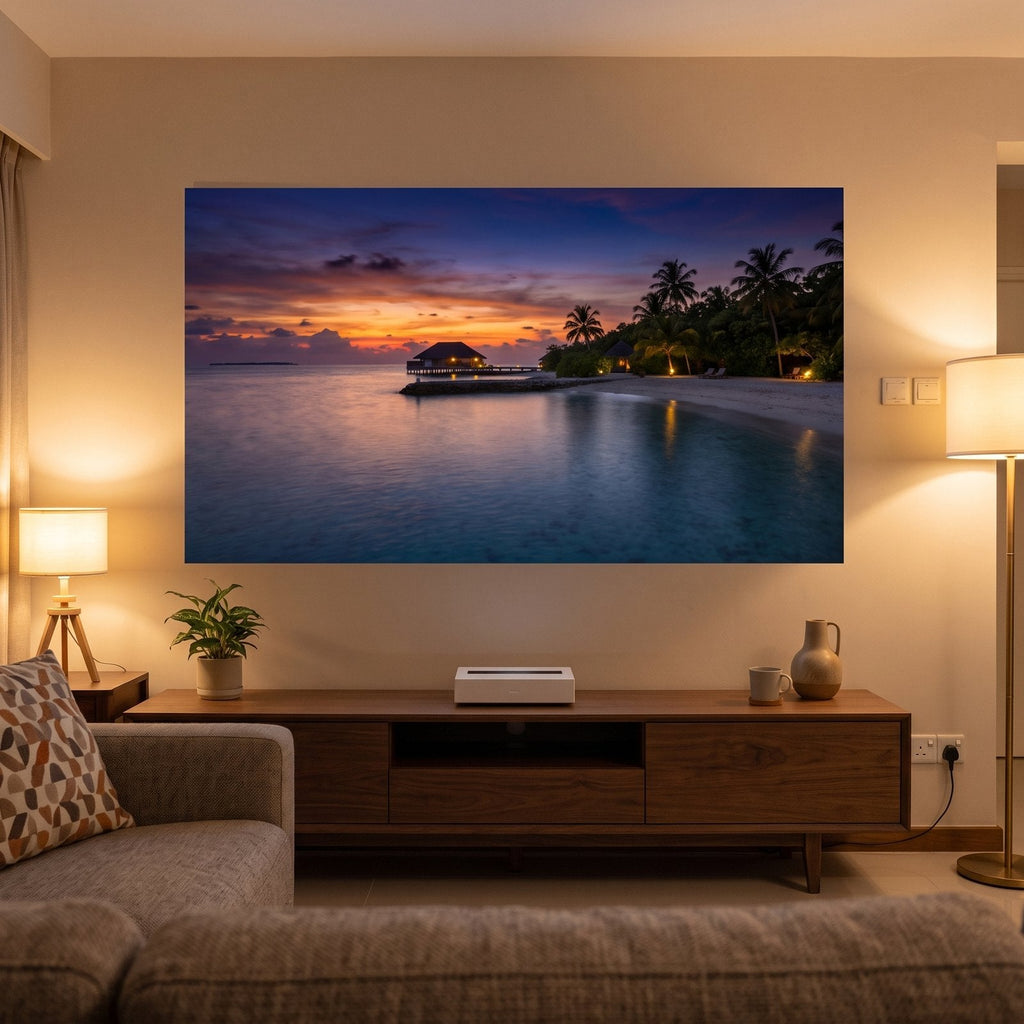

What it looks like on a normal console
Full specification
| Light source | Laser |
|---|---|
| Native resolution | 1920 × 1080 |
| Input resolution accepted | up to 3840 × 2160 |
| Aspect ratio | 16:9 |
| Image size | up to 300" |
| Distance for 100" | 23.5 cm |
| Image offset | 125% |
| Keystone | auto vertical + horizontal |
| Brightness | bench measurement pending |
| Dimensions (W × D × H) | 31 × 18 × 7 cm |
|---|---|
| Weight | 1.8 kg |
| Speakers | dual built-in |
| Wireless | Wi-Fi, Bluetooth |
| Video in | HDMI ARC, HDMI |

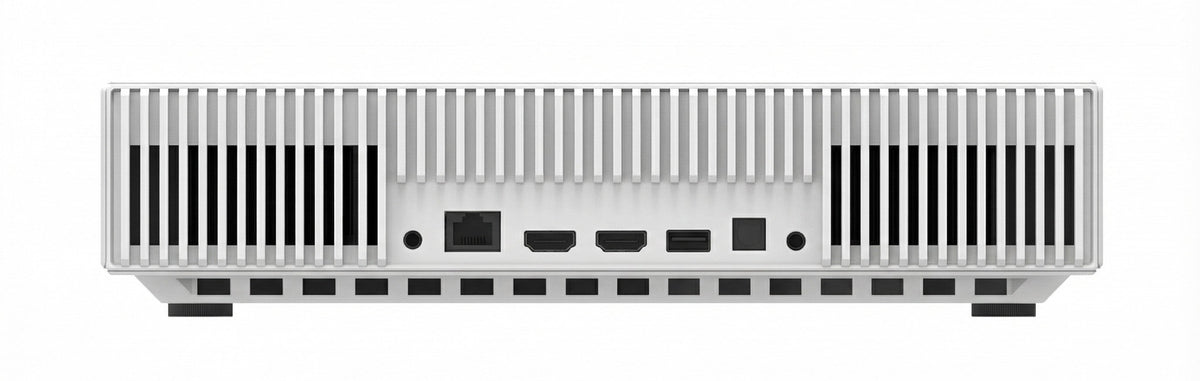

| Other ports | USB, RJ45, S/PDIF, 3.5 mm, DC in |
| In the box | 4K Google TV stick |
| Operating system | Google TV (on the stick) |
| Warranty | 1 year, walk-in service |
Bought in Singapore, serviced in Singapore
You can see this projector running before you buy it, and if something goes wrong you carry it to a counter rather than shipping it overseas.
1 Rochor Canal Road
Daily 11am – 8pm, no appointment
We will tell you if your console is too shallow.
Questions worth asking
My console is only 35 cm deep. Will it work?
Yes, with a smaller image. A 35 cm console leaves 17 cm of gap once the 18 cm body is accounted for, which gives roughly a 72-inch picture. Use the planner above to see the exact number, or send us your console depth on WhatsApp and we will work it out.
Is it actually 4K?
No. The projector's panel is native 1920 × 1080. It accepts and correctly displays a 4K signal, and the Google TV stick included in the box is a 4K stick — but the projected image is Full HD. We would rather you know this now than notice it later.
Can it replace my television?
For most living rooms, yes — it runs the same streaming apps through the included Google TV stick and connects to your soundbar over HDMI ARC. In a room with direct afternoon sun on the wall, a TV will still look better. Come and see it in the showroom under lights before you decide.
Do I need a projector screen?
Not to start. A flat, light-coloured painted wall works well. A screen will improve contrast and colour noticeably, and an ambient-light-rejecting screen improves it a lot in a bright room. We can show you the difference side by side.
How bright is it, in numbers?
We are measuring this unit on our own bench and will publish the figure here with the conditions it was measured under, rather than repeat a supplier number we cannot verify. Until then, judge it with your own eyes in the showroom.
What does the warranty actually cover?
One year, with walk-in service at Sim Lim Square. You bring the unit to the counter; there is no overseas shipping and no third-party depot.
