A projector can produce a sharp, cinematic image, then lose the effect instantly when the screen sits too high, ripples at the edges, or lands in the path of a door. Knowing how to mount projector screen properly is less about drilling a few holes and more about planning the picture your room can actually support.
The screen is the fixed reference point for everything else: projector placement, seating, viewing height, and cable routing. Get it right first, and the rest of the setup becomes simpler. Rush it, and you may end up using heavy keystone correction, living with a tilted image, or patching drywall a week later.
Start With the Screen, Not the Projector
A common mistake is mounting the projector first because it feels like the main event. It is not. The screen dictates where the image needs to be, while the projector should be positioned to match it.
Before opening the mounting hardware, unroll or assemble the screen and hold it in the intended location. Check the viewing position from your main seat. For a typical seated setup, the bottom edge of the viewing surface should usually sit about 24 to 36 inches from the floor. That range keeps the center of the image near natural eye level without making viewers look upward through an entire movie.
There are exceptions. A screen above a fireplace may be the only practical option in some rooms, but it is rarely the most comfortable choice. In a bedroom, a higher screen can work when viewers are reclining. In a conference room, raise the screen enough that people at the back can see over heads and laptops, while keeping text large enough to read.
Also account for the screen’s case, not just its white viewing area. A motorized or ceiling-recessed screen needs clearance above it. A fixed-frame model is wider and taller than the visible image. Portable screens need floor space and a location where nobody will bump the support legs.
Confirm the projector can fill the screen
Screen size and projector distance must agree. Every projector has a throw ratio or supported image-size range. If your projector needs 10 feet to create a 100-inch image but your room only gives you 7 feet, mounting a 100-inch screen will not fix the problem.
Ultra-short-throw projectors are a separate case. Their screen placement is especially precise, and they perform best with a screen designed for UST projection. A standard textured or poorly tensioned screen can make an ultra-short-throw image look uneven. Do not assume any white surface will deliver the same result.
Choose a Mounting Surface That Can Carry the Load
The cleanest installation is only useful if it stays on the wall. A screen should be anchored into solid framing whenever possible, whether that is wood studs, metal studs rated for the load, masonry, or ceiling joists.
Do not trust the small anchors included with every low-cost screen as a universal solution. Manufacturers often supply basic hardware, but it may not suit your wall construction or the weight of a larger fixed-frame or motorized unit. A lightweight manual pull-down screen may be manageable with properly rated anchors. A heavy electric screen should be fastened into framing or installed with mounting hardware specifically rated for its weight and surface.
Use a stud finder to locate the center of each stud, then verify the result with a small pilot hole in a hidden area if needed. Studs are commonly spaced 16 or 24 inches apart, but older homes, renovations, and commercial walls do not always follow the standard pattern.
For concrete or brick, use masonry anchors and a masonry bit sized to the anchor manufacturer’s recommendation. For plaster, expect more uncertainty than drywall and avoid treating it like a simple hollow wall. If you cannot identify a reliable structure behind the mounting location, bring in an installer. Repainting a few holes is cheap. Replacing a dropped motorized screen or repairing damaged wallboard is not.

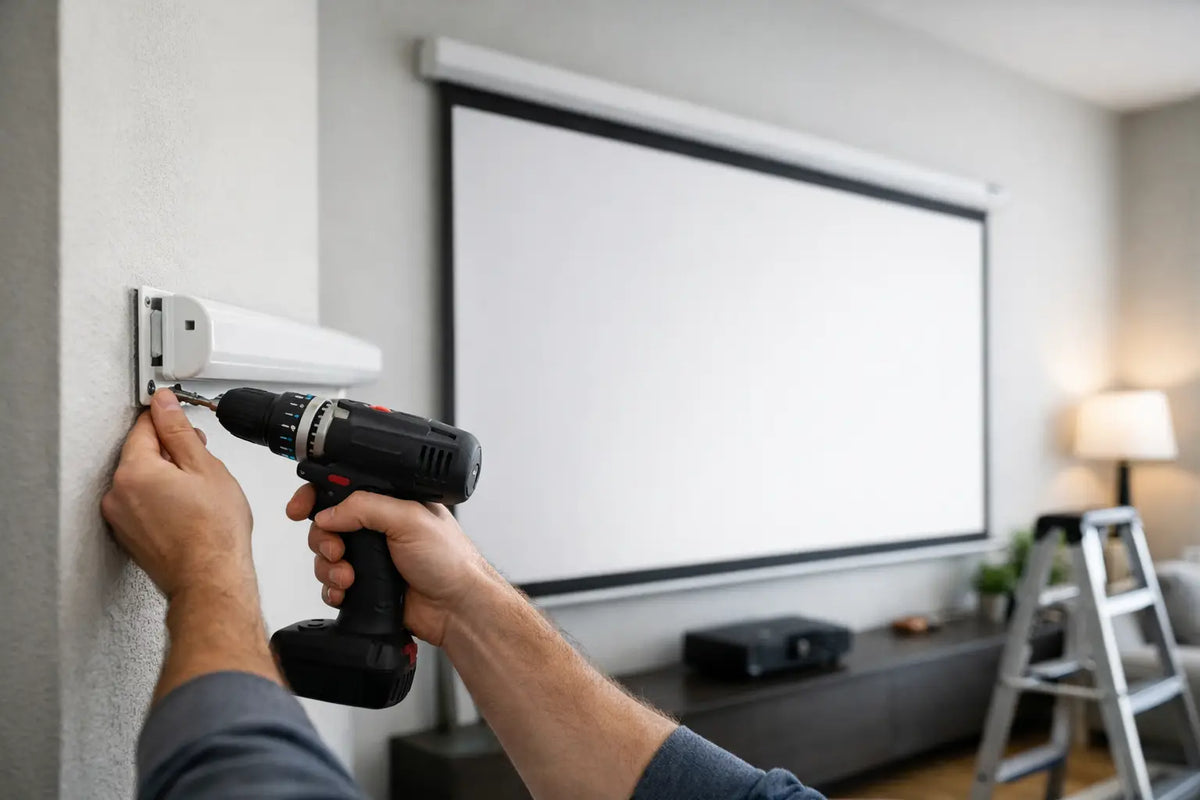

How to Mount Projector Screen on a Wall
Most wall-mounted screens use two brackets or keyhole-style mounting points. The process is straightforward, but accurate measurement matters more than speed.
First, mark the centerline of the wall. Measure the total width of the screen case or frame, divide it by two, and mark equal distances left and right from that centerline. This keeps the screen centered on the room or on the seating area, which may not always be the same thing.
Next, mark the height of each mounting point using the screen’s manual. Measure from the top of the screen case to the bracket holes instead of guessing from the bottom edge. A fixed-frame screen should be measured from the frame’s actual hanging points. Put a level across the marks before drilling. A screen that is off by even a quarter inch can look noticeably crooked against ceiling lines, windows, and furniture.
Drill pilot holes into studs, or install anchors appropriate for the wall. Attach the brackets or screws, leaving enough screw head exposed if the screen uses keyholes. Then lift the screen into position with a second person. Larger screens are awkward rather than merely heavy, and forcing one onto brackets alone is an easy way to scratch the frame or miss the hardware.
Once it is mounted, use a level across the top of the case or frame. Do this before you route cables, install trim, or celebrate. Minor adjustments are much easier now.
Mounting a screen from the ceiling
Ceiling mounting is useful when wall space is limited, when a screen needs to drop in front of a window, or when you want it to disappear above a room’s main sightlines. It also introduces a higher safety standard because the full load is suspended overhead.
Locate ceiling joists, not just drywall. Mark them, check that the brackets align with the screen manufacturer’s required spacing, and use lag screws or other approved structural fasteners. If joists do not line up with the screen brackets, a properly sized mounting board secured across multiple joists can create a stable attachment point. That is a better solution than relying on oversized toggle bolts for a heavy unit.
Measure the drop carefully. The screen should lower to the same comfortable viewing height you would use on a wall. For a motorized screen, leave access to the power connection and confirm that the screen can deploy without hitting a ceiling fan, cabinet door, or pendant light.
Get the Image Square Before You Call It Finished
Mounting the screen level is only half the job. Now align the projector to the screen. Place the projector so its lens is centered horizontally with the screen whenever possible, and keep it level. Lens shift is useful for fine positioning. Keystone correction is a rescue tool, not a preferred installation method.
Heavy digital keystone correction reduces the active image area and can soften detail, especially visible in subtitles, spreadsheets, and presentation text. A projector marketed with dramatic keystone claims is not giving you permission to ignore placement. Real-world clarity comes from physical alignment first.
Project a test pattern or a menu with straight lines. Check that all four edges meet the screen evenly, the image does not spill onto the frame, and focus remains consistent in every corner. If one side is soft or the picture forms a trapezoid, adjust the projector location and height before turning to digital corrections.
For retractable screens, run the screen up and down several times. It should roll smoothly, stop at the intended position, and hang flat. Slight edge curl can happen with inexpensive non-tensioned screens, particularly after storage. It is not always visible during bright sports or casual streaming, but it can be distracting in wide, high-contrast scenes. A tab-tensioned screen costs more, yet it is often worth it in a dedicated home theater or a meeting room where clean presentation lines matter.
Do Not Ignore Everyday Use
The best screen location works when the room is being lived in, not only during installation. Open doors, sit in every major viewing spot, test window coverings, and make sure the screen does not block a thermostat, outlet, or access panel. If children or pets use the room, keep pull chains and exposed cords out of reach or choose a safer motorized setup with properly managed power.
For portable and battery-powered projectors, a permanent screen can still make sense. You get a reliable image target in the living room, then keep the freedom to take the projector outside or into another room. That is the practical advantage of building around real use rather than chasing a complicated, spec-sheet-perfect setup.
If the screen is level, securely anchored, sized for your projector, and comfortable from your seat, stop adjusting and start watching. A good installation should disappear the moment the lights go down.
